24/7 high-performance & flexibility in booksize format: robust, economical, communicative, compact
͏ ͏ ͏ ͏ ͏ ͏ ͏ ͏ ͏ ͏ ͏ ͏
|
|
|
24/7 high-performance & flexibility in booksize format
|
robust • economical • communicative • compact
|
|
Discover BS-U830 IPC
|
|
|
30.04.2024,
your project requires highly efficient computing, communication or video performance directly on site – compact, economical and fail-safe?

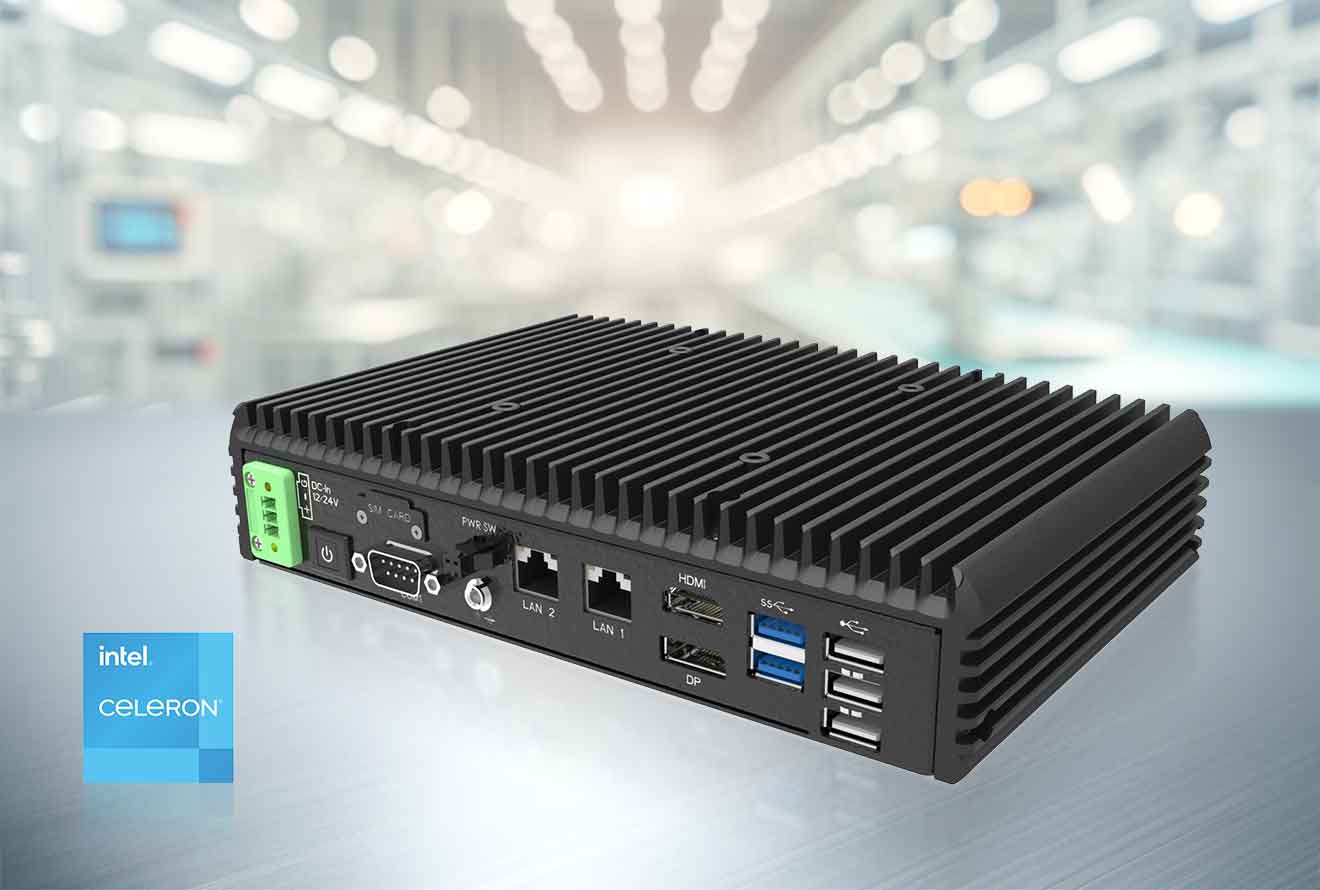

The exceedingly robust industrial PC BS-U830 in the versatile booksize format with a height of just 5 cm is designed for maintenance-free use in continuous operation on site. The completely fanless system without any mechanical or moving parts is protected in a robust steel sheet housing enclosed by a solid aluminum cooling element.
|

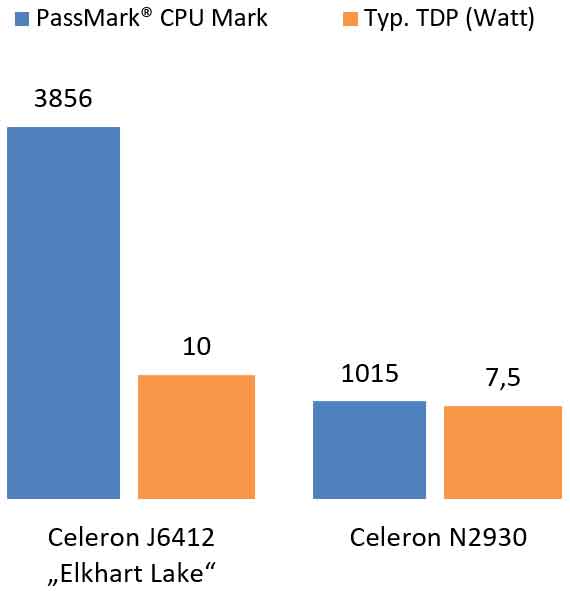

Intel® Celeron “Elkhart Lake” – this is the latest Celeron generation from the Intel Emedded program for long-term available CPUs. With this high-performance, economical fanless system, you can create future-proof applications with plenty of performance reserves under Windows 10/11 or Linux.
|
|
The long-term available systems allow a permissible operating temperature of an impressive -40° C to +60° C.
This allows you to implement not only reliable automation and system controls, but also a wide range of applications in transportation, logistics, point-of-information, terminals and wherever a small, reliable PC is needed.
Are you looking for the perfect industrial PC for your project? Our experts will be happy to advise you!
|
|
Discover BS-U830 IPC
|
|
|

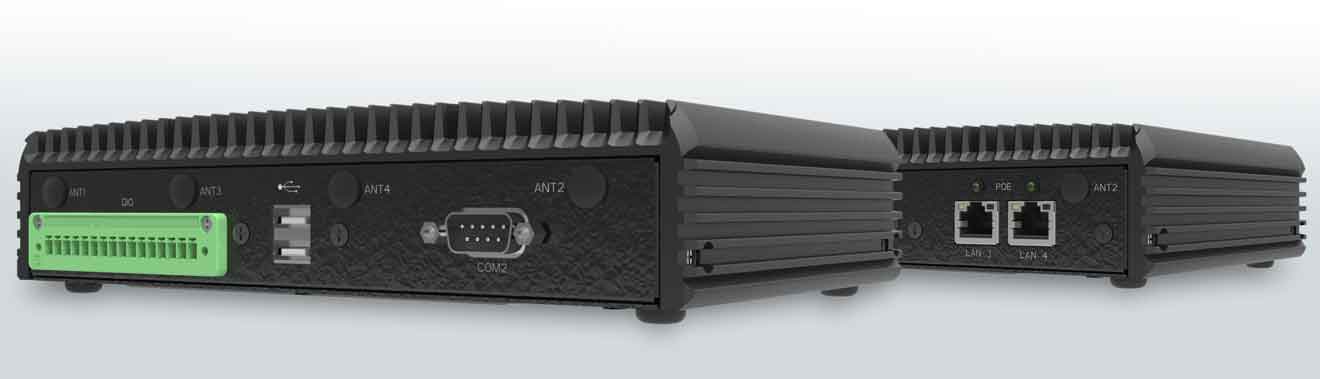

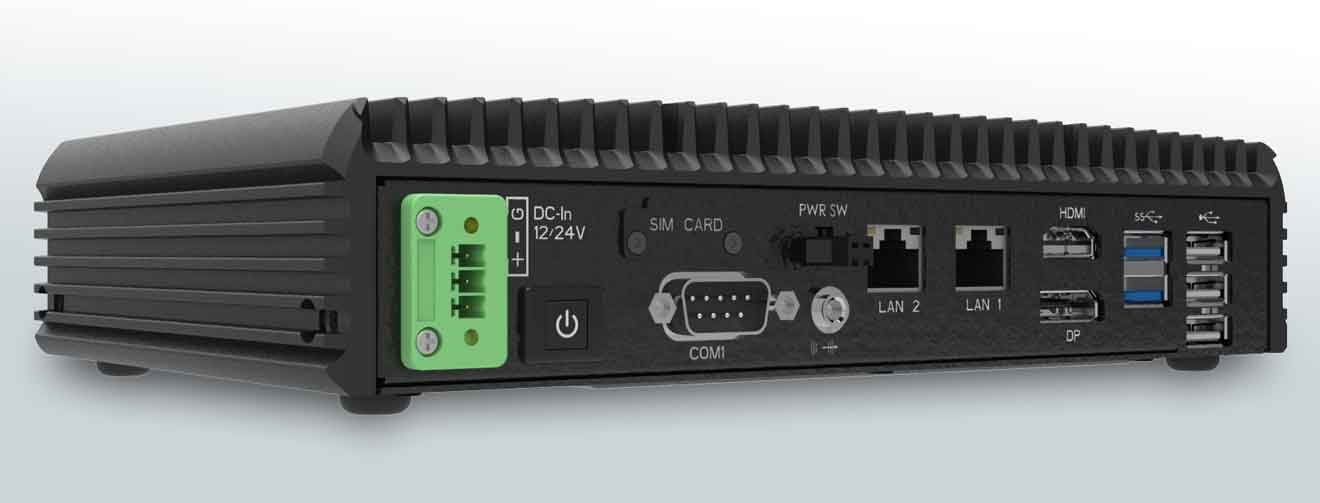

Flexible communication talent: In addition to seven USB and two serial RS-232/422/485 interfaces with 5V/12V, 2 × LAN and optional WLAN are also available. The terminal block for the power connection can be used flexibly with system power or a power supply unit.
4K video output via HDMI or DisplayPort: Realize sophisticated information systems even under adverse environmental conditions.
Install the robust IPC easily and securely with mounting brackets or on a top-hat rail (DIN rail). The device can also be positioned freely at the place of use on the non-slip feet.
|
|
|
Even more freedom is offered by the universal digital I/O with six inputs and six outputs. Optionally use two additional LAN ports for applications with Power-over-Ethernet.
|
|
Discover BS-U830 IPC
|
|
Specifications BS-U830
|
|
CPU:
|
Intel Celeron J6412 (4 × 2 GHz),
optional Atom x6212RE/x6425RE
|
|
OS Support:
|
Windows 10/11 IoT Enterprise, Ubuntu
|
|
Memory:
|
8-32 GB DDR4
|
|
Storage:
|
256 GB M.2 and/or 2.5" SSD
|
|
Interfaces:
|
2 × USB 3.0, 5 × USB 2.0,
2 × COM (RS-232/422/485 5V/12V),
2 × RJ45 LAN, Line-Out
|
|
Digital-I/O:
|
6 × in / 6 × out incl. 2 × 5V, 2 × GND
|
|
Video-Out:
|
DisplayPort max. 4096×2304,
HDMI max. 4096×2160
|
|
PoE:
|
optional 2 × RJ45 Power-over-Ethernet (30 W)
|
|
WLAN:
|
optional
|
|
Dimensions:
|
22 × 14 × 5 cm (W×D×H)
|
|
Material:
|
Aluminium and steel sheet
|
|
Protection:
|
IP20
|
|
Operating temp.:
|
-40 ~ 60 °C
|
|
Power-In:
|
12/24 V terminal block, 3 pin
|
|
Mounting:
|
Wall mounting rails (optional),
DIN rail top-hat rail adapter (optional)
|
|
|
|
|
|
|
|
|
|
|

|
|
|
|
