Elegant, robust, long-term available:

The new cost-effective multi-touch HMI and display series

29.04.2020,

with the new PT series, we are expanding the HMI product range with another economically interesting HMI and display solution. The multi-touch HMIs with 15.6-inch screen meet the demand for larger screens, for example in building automation or for POI applications.
They are characterized by extremely low power consumption. With PoE (Power-over-Ethernet), both data and electrical power can be transmitted on request, which reduces installation costs.

The slim, elegantly designed devices made of resistant industrial plastic are, as usual, of high-quality workmanship, have long-term availability and offer protection against dust and water at the front:

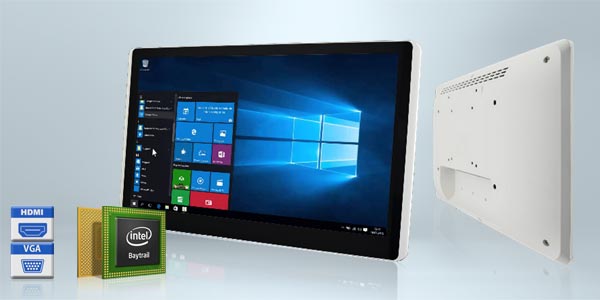

HMI Panel PC and display in 15.6 inch with Intel Celeron or as industrial monitor
completely flat front surface of the PCAP multi-touch screens is easy to clean
The absolutely flat front surface of the multi-touch screen is ideal for applications that place high demands on hygiene and attractive design.
Durable and elegant industrial plastic construction for VESA mounting
The reliable HMIs offer a durable and elegant industrial plastic construction for rear VESA mounting.
HMI panels in semi-industrial use in a control room
The long-term available and cost-efficient HMIs are also perfectly suited for semi-industrial use, for example in control rooms …
PT Series HMI touchscreens at the point of sale in the supermarket
… or even for economically sensible mass use also as a terminal at the point of sale and point of information.
PT series HMI panel PC in the medical field
With its flat, easy to clean surface and elegant design, the PT series also cuts a fine figure in the medical sector.
IP65 protection on the front of the HMI Panel PCs prevents dust and moisture from penetrating
With front IP65 protection against dust and moisture, the HMI Panel PCs and displays are also equipped for adverse operating environments.
Display:   15,6" (16:9) 1920 × 1080
projected capacitive multi-touch screen
CPU:   Celeron N2930
or passive display only
OS:   Windows 10 IoT Enterprise
System memory:   2–8 GB DDR3
Storage:   64 GB M.2 SSD
Power:   12 VDC or
Power-over-Ethernet (PoE) optional
Power consumption:   10 Watt LCD
21 Watt Panel PC
Mounting:   rear VESA interface
Protection:   IP65 front
IP20 rear
